Use of alternate fuels in the Cement Kiln leads to excessive preheater exit temperatures. The Cement plant in Jakarta, Indonesia with a capacity of 7800 TPD, planned extensive use of alternate fuels in the kiln. This was leading to excessive Preheater exit temperatures up to 4300C and was limiting the fan capacity. Hence, they needed a gas cooling system before the fan to reduce the temperature by 500C so that the plant production level is maintained/enhanced as required.

The Plant project team looked at the possibility of gas cooling system in the down comer, however it was not feasible as the duct had many bends/limited straight lengths. These can lead to operational complications due to coating formations in the duct walls and fan impellers. Their Vendor NASEQUIP Systems, well known manufacturer of gas cooling systems suggested to install a single fluid, high pressure gas cooling system in the Top cyclones of the plant. These systems operate with Single fluid, high Performance lances with flow control effected by VFD driven Pump. It also improves Cyclone collection efficiency.

The plant has 2 Preheater strings each having twin Cyclones. NASEQUIP designed the system with 4 lances in each cyclone. Each Preheater string was fed by a high-pressure pumping unit independently controlled by varying the speed of the Booster pump.

High performance lances with auto-drain facility

Pneumatic Cylinder for Drain valve operation

1.System Description:
The gas cooling is done in the Preheater top cyclone by means of high-pressure nozzles installed from the sidewalls. For better rangeability and droplet control, the Plant opted operation of system from 30 to 50 bar pressure @ nozzle. For these 2 multistage pumps - feed & booster pumps - were used in series. The nozzles are located about 800 mm directly below the dip tube periphery. The nozzles spray is directed 45 Deg. downwards from the lance axis.

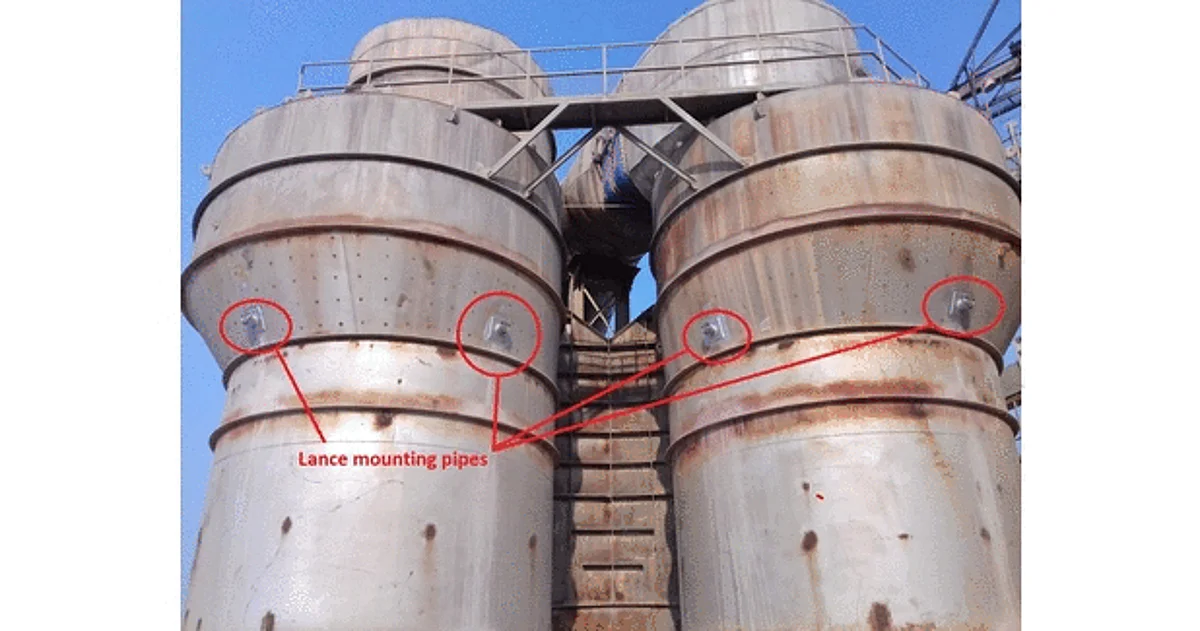

Lances mounted on the cyclone wall

2.Pump skid:
High pressure pump station consisting of self-cleaning suction filter, multistage horizontal type feed pump with motor, vertical booster pump operating with VFD etc. is located in the first floor. The water tank was located at second floor. The final outlet pressure at the booster pump outlet was ranging between 38 bar to 55 bar.

High Pressure Pumpskid located on the first floor for thespray system

3.Control Station:
The temperature control is through PID loop, which was configured in the customer PLC. The downstream temperature measured in the down-comer duct close to the pre-heater fan is the input to the PLC/PID controller. Depending upon the temperature to be controlled, the lances are cut in or cut-off from the circuit.

The system has an on-line filter cleaning facility for the lance filters, which also has been incorporated in the logic.

Flow control unit withON/OFF valves for a set of 2 lances, on the Pre-heater 6thfloor

PLC/SCADA SCREEN SHOT OF THE GAS COOLING SYSTEM IN THE PLANT
4.Emergency shutdown of the gas cooling system:

To enable closure of the water spray system, in case of sudden kiln stoppage or fan stoppage, a feedback signal can be used to stop the water spray system through a shutdown valve in the control unit. This emergency shutdown function has been incorporated in the control schematic.

5.Plant Operating parameters before and after Installation of the Gas cooling System:
The Plant operating parameters before and after installation of the gas cooling system is tabulated as follows.

TECHNICAL OPERATING PARAMETERS OF CEMENT KILN IN JAKARTA, INDONESIA

CLINKER PRODUCTION CAPACITY - 7800 TPD

Srl No:

Operating Data, Design & after Installation.

Units

DESIGN

ACTUAL OPERATION

ILC

SLC

ILC

SLC

1

Upstream Gas Flow @ Twin cyclone in each string

Am3/hr

7,07,273

7,07,273

6,88,087

6,88,087

2

Upstream Gas flow at each cyclone

Nm3/hr

2,56,446

2,56,446

2,62,560

2,62,560

3

Gas temperature before cooling

oC

430

430

395

395

4

Required cyclone outlet temperature (design)

oC

370

370

350

350

5

Cyclone Diameter (ID)

mm

4988

4988

6

Cyclone effective height

mt

10

10

7

Dip Tube Diameter

mm

2810

2810

8

Cyclone inside pressure (considered by supplier)

mmWC

600

600

9

Cooling water temperature

oC

30

30

30

30

10

Control skid

PREHEATER 6th FLOOR

11

Location of Pump skid

PREHEATER TOWER 1st FLOOR

12.1

Calculated Water Quantity, Min. Starting flow

(m3/hr)

2.30

2.30

2.30

2.30

12.2

Normal Operational flow rate

(m3/hr)

9.00

9.00

9.00

9.00

12.3

Design flow rate

(m3/hr)

11.50

11.50

9.4

9.4

13

Water Pressure Nozzle - minimum (Maximum)

Bar

30 (50)

30 (50)

14

Number of Lances & Model No: CMQ 1120 X16, FLOW RATE 23.5 lpm @ 45 BAR, (21 lpm @ 35 bar)

Per Cyclone

4

4

4

4

Each String

8

8

8

8

Total

16

16

15

Gas flow rate after cooling at cyclone exit duct

Am3/hr

6,68,978

6,68,978

6,68,978

6,68,978

16

Pump Capacity - flow rate

m3/hr

11.5

11.5

9.4

9.4

Feed Pump KSB - MOVI 32/14 outlet pressure

bar

32.0

32.0

Feed Pump Motor rating

KW

22.0

22.0

Booster Pump (with VFD) RC 16/160 Outlet pressure

bar

40 to 54

40 to 49

Booster Pump Motor rating (VFD rating)

KW

15 (18.5)

15 (18.5)

Performance graph of the Gas cooling system (SLC string), during commissioning.

6.Conclusion:
NASEQUIP Systems has been able to commercially make the Gas cooling system viable within the limited space in the Cyclone, without wetting & coating formations. The various improvements made in the design of the lances like automated filter cleaning arrangement and manual backwashing arrangement for the pump suction filter etc. makes the system operation trouble free and user friendly. The VFD control for downstream temperature being used by NASEQUIP is quite stable & well proven for the application.
